Many people still know rock anchor bolts at the stage that they are buried in the soil and do not need any protection. In fact, as an important component of the support system, the corrosion protection of rock anchor bolts is very important. Some materials cannot withstand the corrosive effects of water and corrosive substances, once corroded, it will cause the bolt to fail or need to be replaced. Corresponding anti-corrosion measures should be used in the design to ensure rock anchor bolts' service life and anchorage force.



1. Corrosion Mechanism of Rock Anchor Bolts:

Corrosion occurs when metal rock anchor bolts are exposed to moisture, oxygen, and certain environmental conditions. These factors initiate electrochemical reactions, leading to the degradation of the rock anchor bolt material. Rock anchor bolts can corrode through processes such as galvanic corrosion, crevice corrosion, and stress corrosion cracking. Understanding the corrosion mechanism is crucial for implementing effective anti-corrosion strategies.



2. The Effect of Corrosion of Rock Anchor Bolts on the Support Structure:

Corrosion of rock anchor bolts poses serious consequences for the integrity and safety of support structures. The weakening of anchor bolts due to corrosion compromises their load-bearing capacity, reducing the overall stability of the structure. Corrosion-induced expansion can exert additional pressure on the surrounding rock, leading to cracks and displacement. Over time, this can result in structural deformation, foundation settlement, and even catastrophic failure.



3. Design Principles of Rock Anchor Bolts Corrosion Prevention:

To ensure the long-term performance and durability of rock anchor bolts, it is essential to incorporate effective corrosion prevention measures during the design phase. Some key principles include material selection based on environmental conditions, proper protective coatings or surface treatments, corrosion inhibitors, and cathodic protection systems. Adequate consideration of these factors in the design process can significantly enhance the corrosion resistance of rock anchor bolts.



4. The Anti-Corrosion Process of Self-Drilling Anchor Bolts:

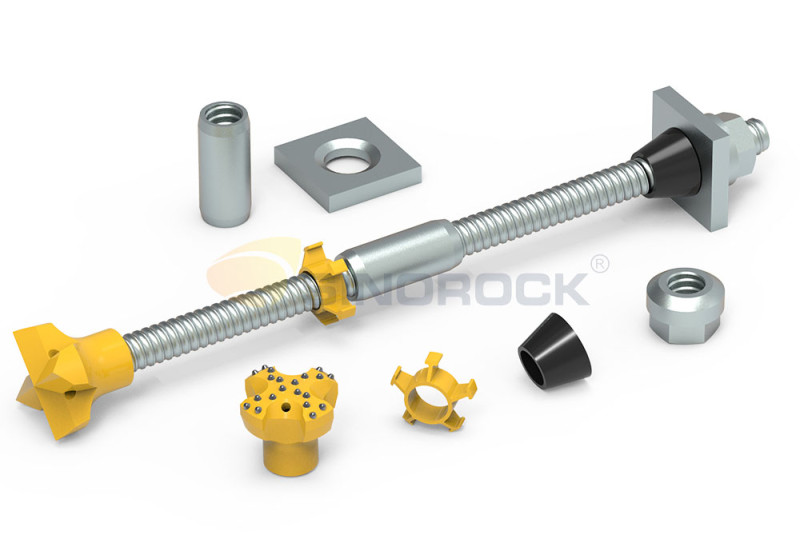

a. Galvanized Self-Drilling Anchor Bolts:

Galvanization involves coating anchor bolts with a layer of zinc, which acts as a sacrificial anode, protecting the underlying metal from corrosion. The zinc coating corrodes first, safeguarding the anchor bolt material. Regular inspections and maintenance are necessary to ensure the integrity of the galvanized coating.

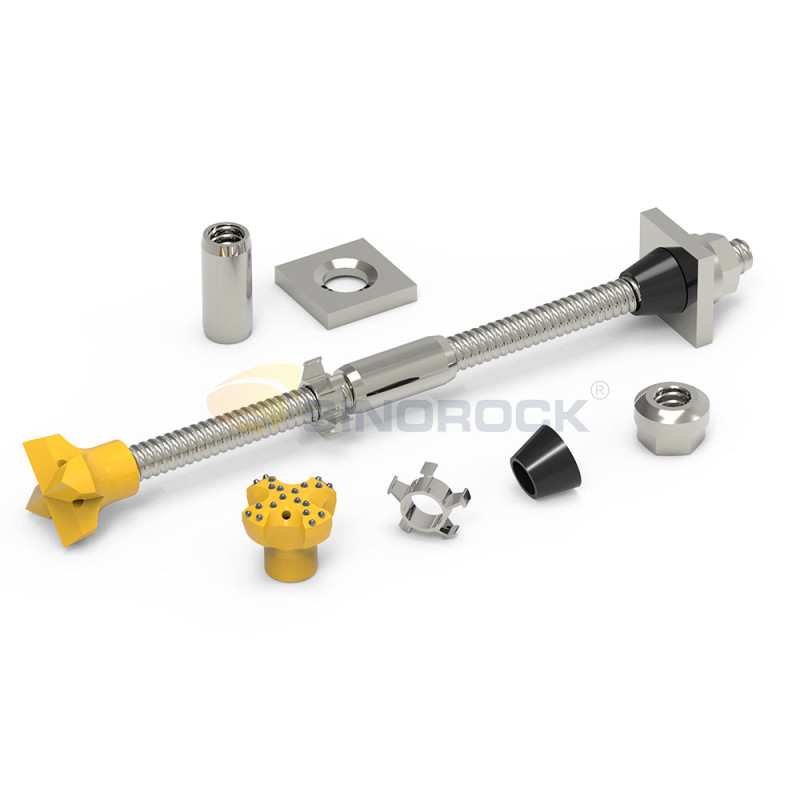

b. Stainless Steel Self-Drilling Anchor Bolts:

Stainless steel possesses inherent corrosion resistance due to the presence of chromium. However, to maximize its effectiveness, the anchor bolts should have a suitable grade of stainless steel and be passivated to enhance the formation of a protective oxide layer.

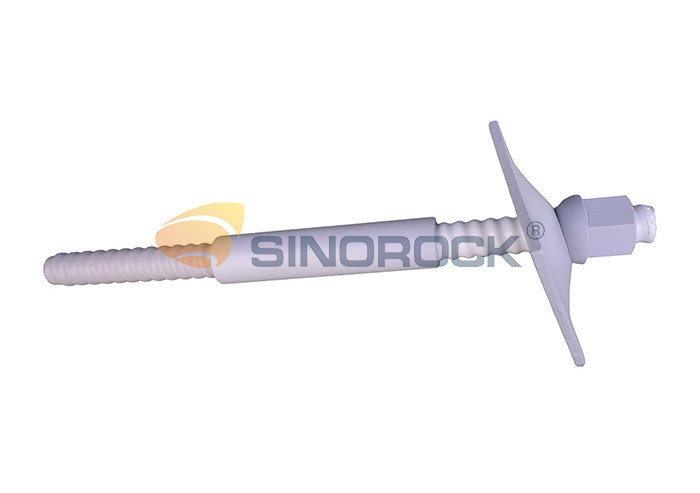

c. Epoxy Coated Self-Drilling Anchor Bolts:

Epoxy coating provides a barrier between the anchor bolt and the corrosive environment. It offers excellent adhesion, high chemical resistance, and protection against moisture ingress. The application of epoxy coatings requires careful surface preparation and quality control during installation.



5. Summary:

The implementation of anti-corrosion measures is crucial to ensure the long-term performance and safety of rock anchor bolts in engineering construction. Understanding the corrosion mechanism, adopting proper design principles, and employing suitable anti-corrosion processes such as galvanization, stainless steel, and epoxy coatings can significantly enhance the corrosion resistance of rock anchor bolts. By prioritizing anti-corrosion practices, we can ensure the durability and integrity of support structures, contributing to the overall safety and longevity of engineering projects.

Sinorock's team has many years of experience in providing complete geotechnical engineering services. If you have any needs or questions about anti-corrosion self-drilling anchor systems, please feel free to contact us at [email protected].
