Bridges are vital infrastructure elements that connect communities, facilitate efficient transportation, and enhance economic activity. They are designed to meet specific functions and address various engineering challenges. The evolution of bridge design from ancient times to modern days showcases continuous innovation in engineering techniques.

Evolution of Bridge Design and Construction

1. Ancient Bridges (Pre-1000 BCE): Made from natural materials like wood and stone, these early beam and arch bridges facilitated trade and connectivity among ancient civilizations.

2. Roman Engineering (1000 BCE 500 CE): Roman engineers advanced the use of stone arch bridges, exemplified by the Pont du Gard, enhancing durability and aesthetics.

3. Medieval Period (500 1500 CE): Bridges like the Ponte Vecchio in Florence integrated more sophisticated design elements, reflecting technological and cultural advancements.

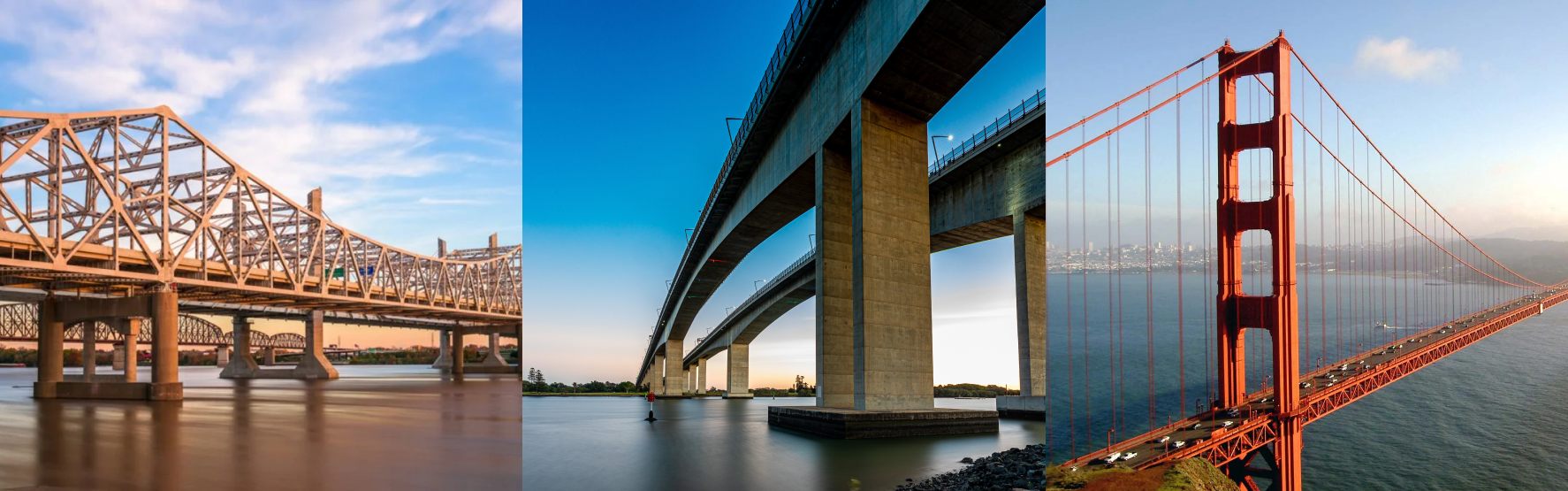

Types of Bridges

1. Beam Bridges: Simple, horizontal structures supported by beams, suitable for short spans. Commonly used for footbridges and highway overpasses.

2. Truss Bridges: Utilize triangular sections to handle dynamic loads, used for medium to long spans, including highway bridges.

3. Arch Bridges: Characterized by their curved shape, efficiently distributing loads through compression. Examples include ancient Roman aqueducts and modern arch bridges.

4. Suspension Bridges: Overhead cables support the roadway, allowing long spans. Iconic examples include the Golden Gate Bridge and the Brooklyn Bridge.

5. Cable-Stayed Bridges: Cables run directly from the roadway to towers in a diagonal arrangement, suitable for long spans like the Millau Viaduct in France.

6. Cantilever Bridges: Use projecting beams supported only at one end, often made of steel or iron. The Forth Bridge in Scotland is a notable example.

7. Movable Bridges: Include drawbridges, vertical-lift bridges, and swing bridges, allowing movement to provide clearance for water traffic.

8. Floating Bridges: Built on watertight pontoons, effective in deep or soft-bottomed waters. The Evergreen Point Floating Bridge in Seattle is the longest of its kind.

Unique Bridges

• Living Root Bridges: In Meghalaya, India, made from the roots of rubber trees.
• Rolling Bridge (London): Curls into a circular shape to allow boats to pass.
• Octavio Frias de Oliveira Bridge (São Paulo): Features an X-shaped tower.
• Banpo Bridge (Seoul): Known for its fountain system.
• Langkawi Sky Bridge (Malaysia): Offers stunning views, suspended from a single pylon.

Factors Influencing Bridge Design

1. Geographical and Environmental Considerations: Location impacts design due to factors like topography, soil conditions, and climate.

2. Load Requirements and Traffic Demands: Bridges must support various loads, requiring strong materials and wider decks for high traffic.

3. Material Selection: Common materials include concrete, steel, timber, and composite materials, chosen based on durability, cost, and aesthetics.

4. Aesthetics: Bridges contribute to the visual landscape and must balance functionality with visual appeal.

In summary, bridges are crucial for connectivity, economic activity, and infrastructure. Their design and construction have evolved significantly over time, addressing various engineering challenges and enhancing their functionality and aesthetic appeal.
